#Braumeister 1000-Litre

braumeister-logo

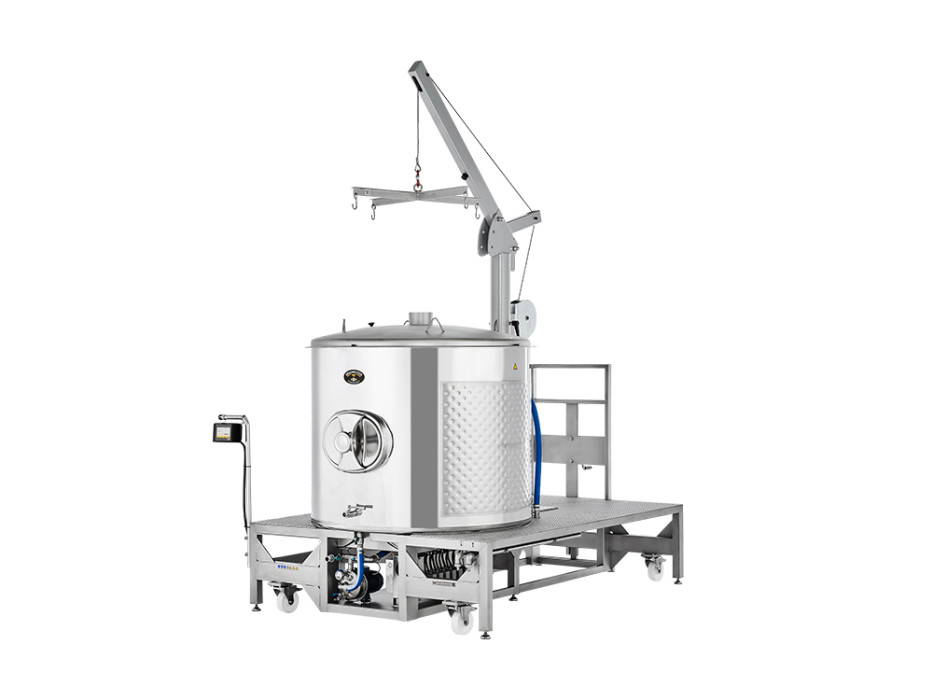

In response to many customer requests, Speidel have now developed the 1000 litre Braumeister. For those who want to brew even more beer, this model is just right. Even with a 1000 litre batch, the brewing process remains as simple as with its little brother.

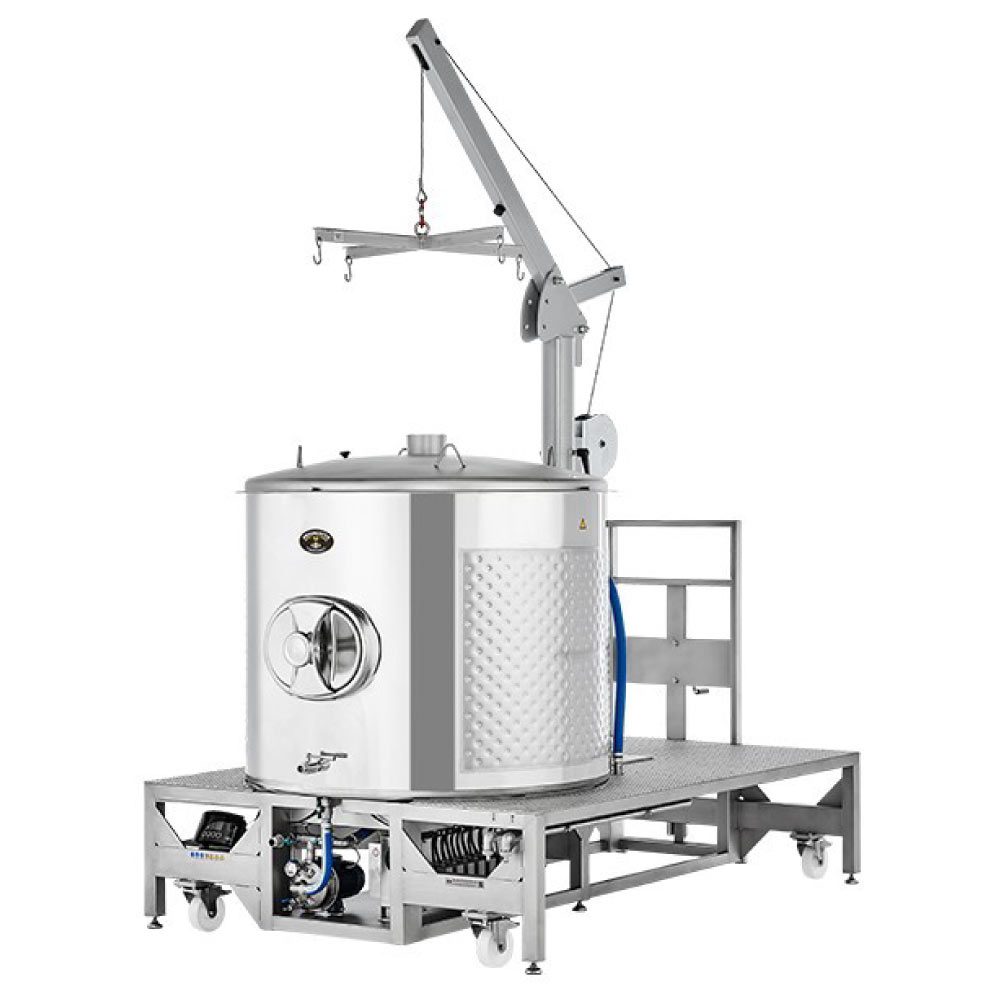

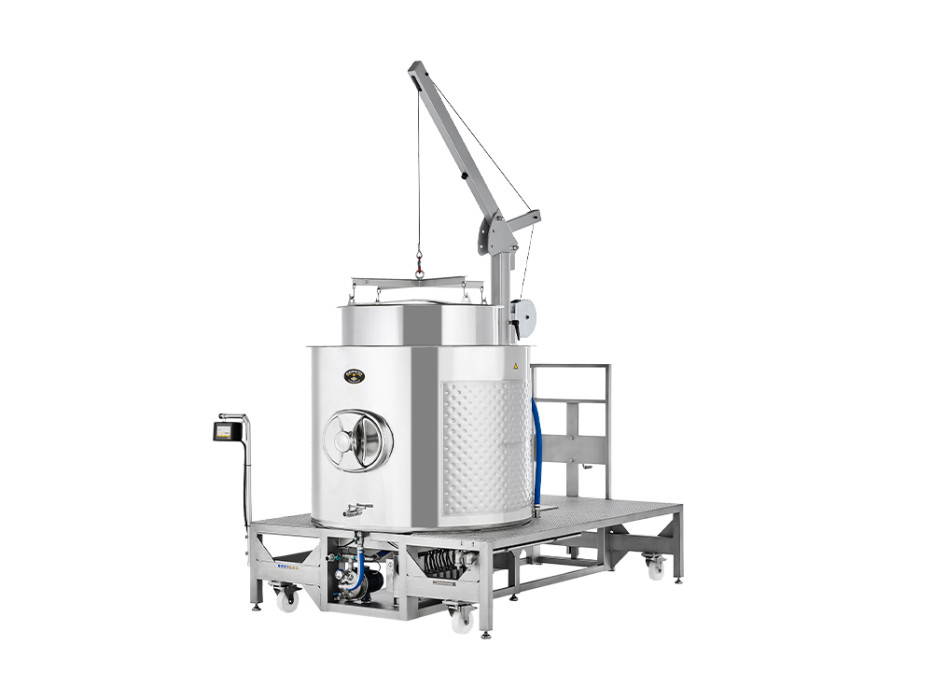

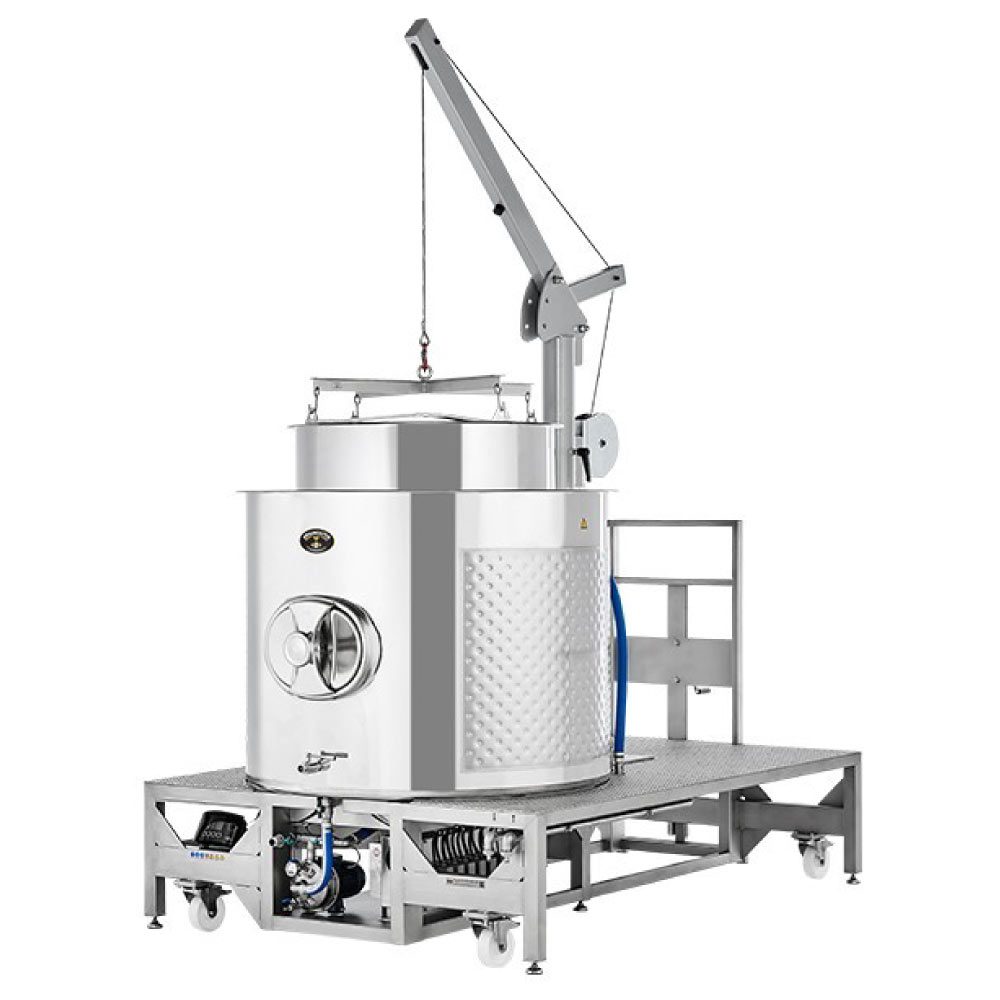

The new touchscreen makes it easy to operate, and the sensor in the pressure line now allows the pump to be controlled by pressure in addition to speed. The integrated timer function makes brewing easier because, for example, the brewing water can be heated up early in the morning. The large malt pipe can also be easily lifted using the easy-to-operate crane with hand crank. The manhole facilitates access to the inside of the boiler. The Braumeister can be set up securely with its adjustable feet, but remains flexible due to its wheels. In spite of the impressive volume, even the very tall master brewer remains a compact brewing plant.

  • High quality German manufactured stainless steel
  • Control system matches smaller Braumeisters for easy transition from small to large units
  • Quantity: 1000 litre of finished beer (normal beer)

Product Code: SP41000​-20

“Item not held in stock, imported to order only. Local delivery from port of arrival additional”


Download Full Spec Sheet

Enquire Now

Description

TECHNICAL DETAIL

  • Heating coil: 12 x 3000 W output
  • Pump: 370 W
  • Power supply connection: 400 V 3-phase (fuse protection min. 63 Amp.) – [NB: Requires NZ plug, not supplied]
  • Total power consumption: 38 kW
  • Cooling: 2.56 m2 double jacket surface area. An additional heat exchanger plate for cooling is recommended (not supplied)
  • Control system: fully automatic brewing control (temperature, time, pump)
  • New Braumeister control with touchscreen
  • Pressure sensor in pressure line to control pump via pressure (or speed as before)
  • Vaulted top with DN 150 connection piece for extractor hood and hop delivery opening
  • Max. malt quantity: 225 kg

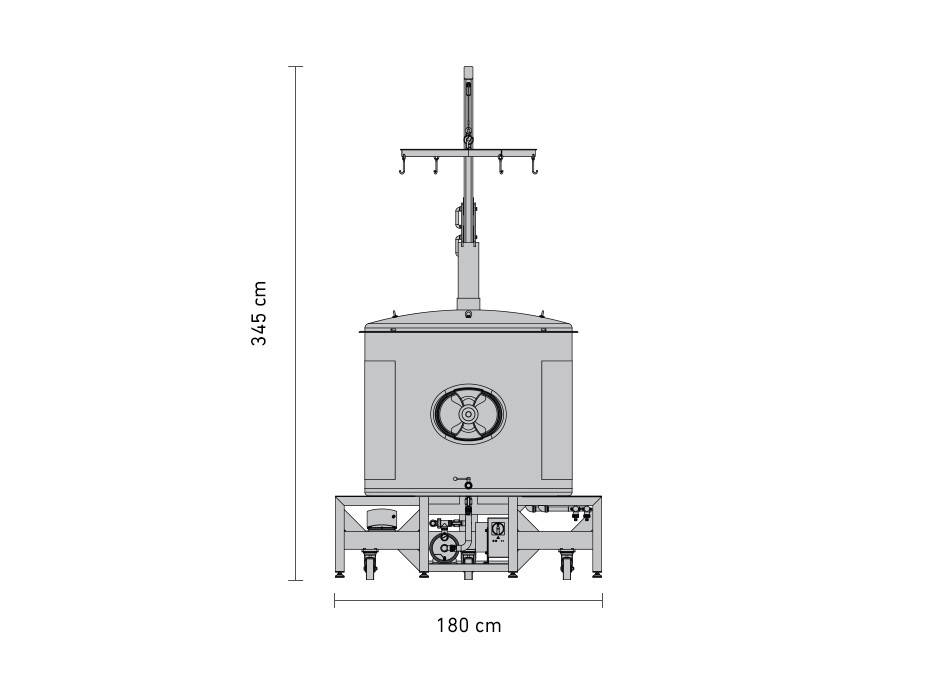

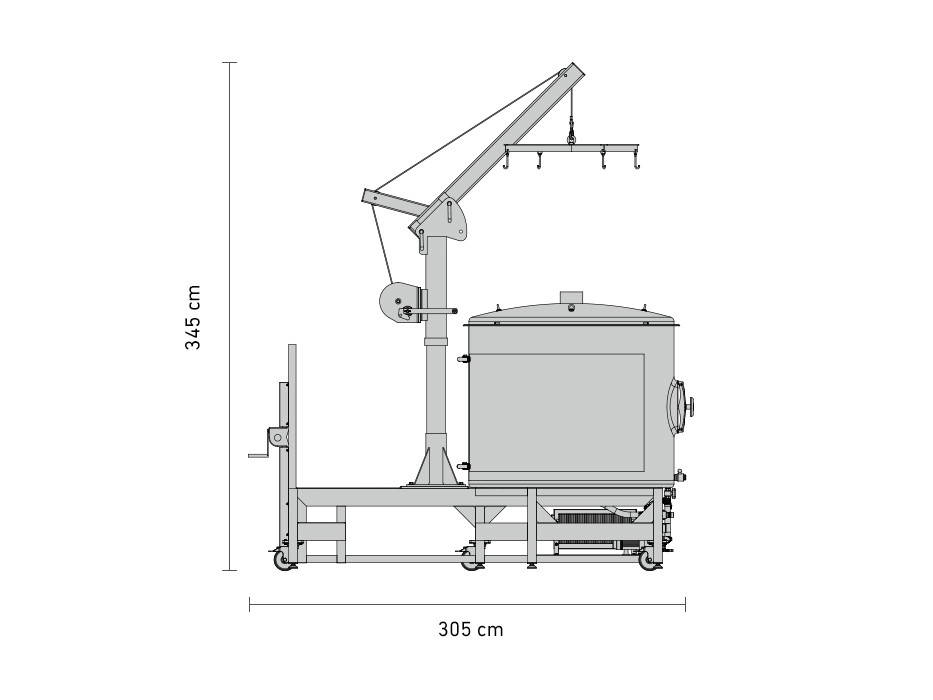

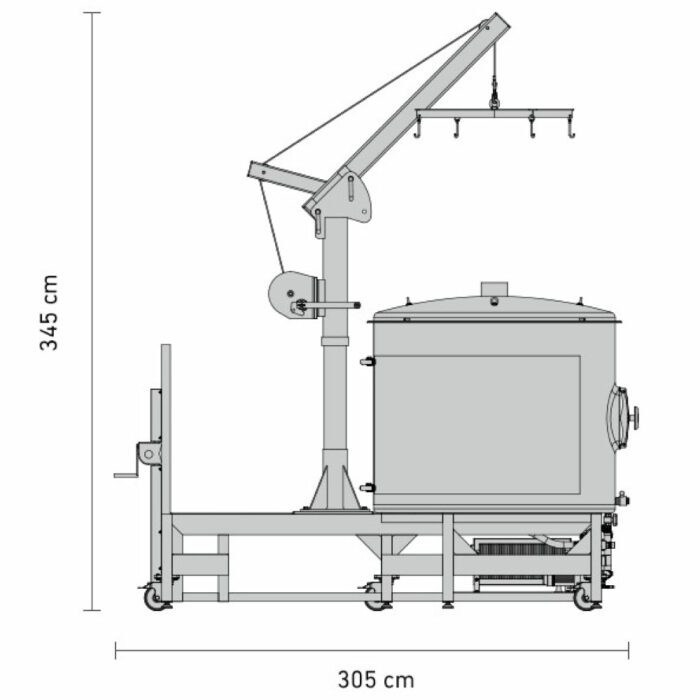

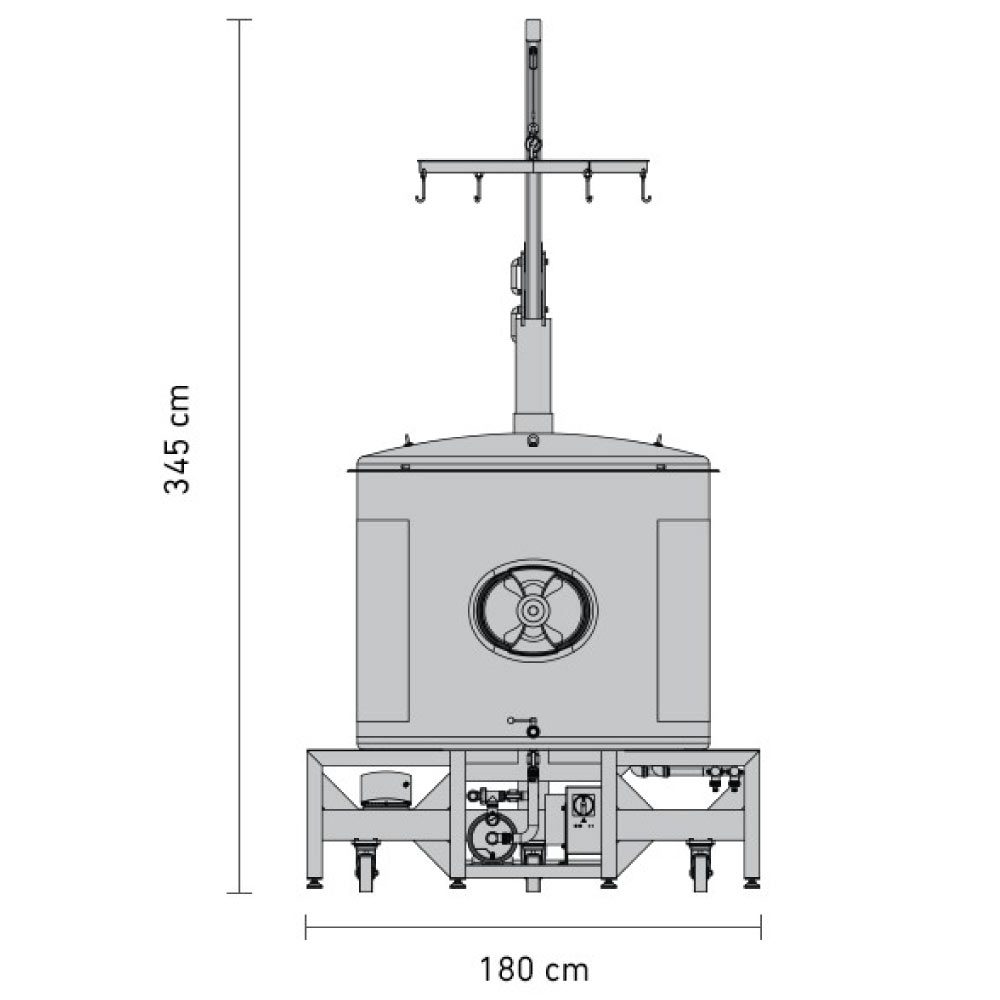

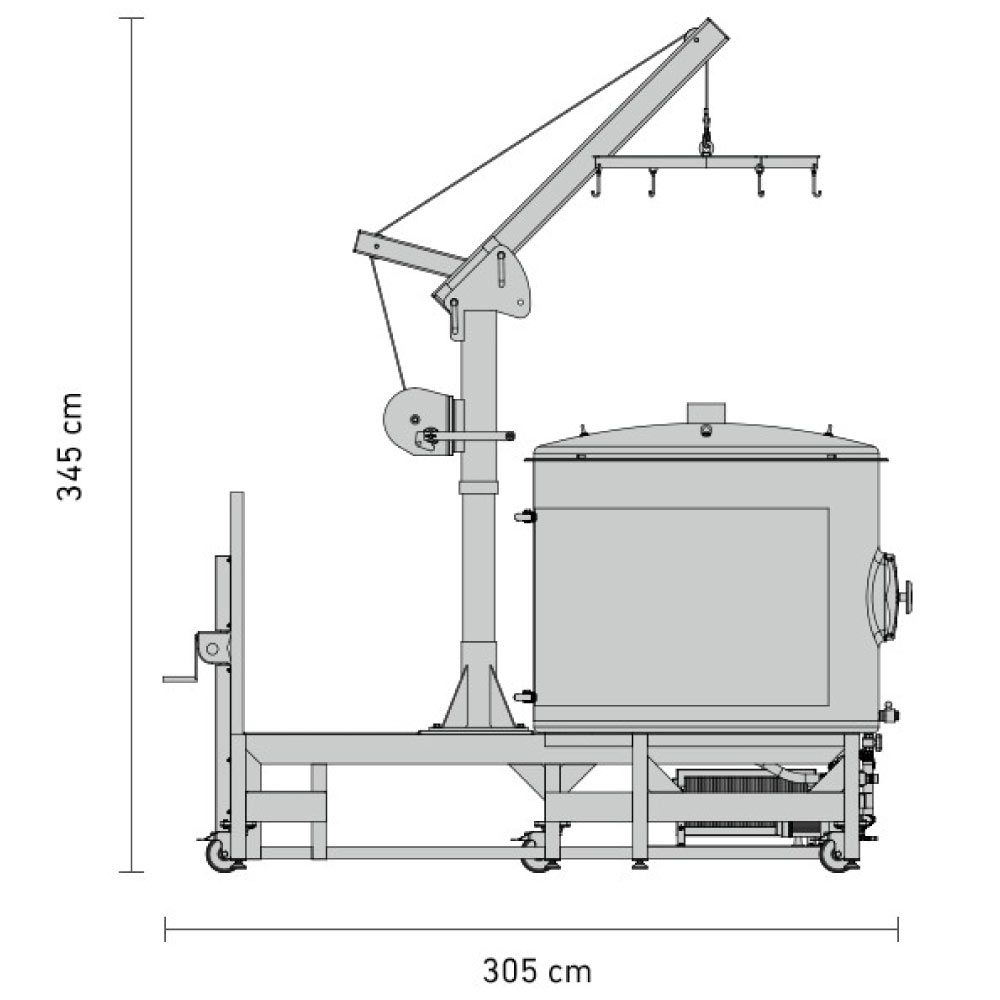

  • Weight: 850kg; Dimensions: 305 x 180 x 345 cm (L x W x H)
    • Shipping Weight: 980kg in wooden crate; Crated Dimensions: 310 x 190 x 195 cm (L x W x H)
