Braumeister 500L

braumeister-logo

The Braumeister 500L is a professional brewing system designed for commercial breweries, brewpubs, hospitality venues and large-scale brewing applications. Producing approximately 500 litres of finished beer per batch, it combines high production capacity with the simplicity and reliability that have made the Braumeister range popular worldwide.

The fully automatic brewing control system manages your customised recipes while maintaining precise temperatures and timings throughout every stage of the brewing process. Lautering is performed efficiently using the included lifting system, allowing the malt pipe to be raised quickly and cleanly with minimal manual effort.

Despite its large capacity, the Braumeister 500L remains mobile and practical to operate. Its compact footprint helps maximise production capacity while minimising floor space requirements, making it ideal for breweries, brewpubs, hospitality venues and brewing groups.

Key Features

  • Premium German-manufactured stainless steel construction
  • Control system shared across the Braumeister range for easy scaling from pilot to production brewing
  • Produces approximately 500L of finished beer per batch (approximately 550L of wort)
  • Integrated Wi-Fi for recipe synchronisation and software updates
  • Touchscreen brewing control with guided brewing process
  • Pressure sensor-controlled pump management for optimised wort circulation

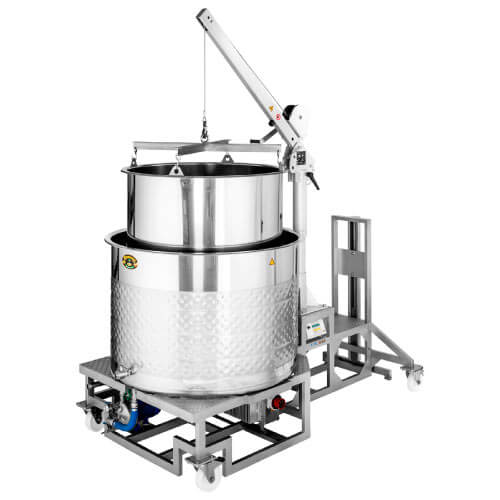

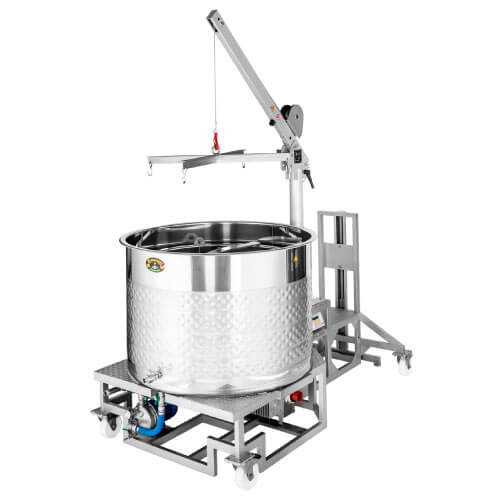

  • Includes lifting system for efficient lautering
  • Optional 500L cooker available, allowing the Braumeister to begin a second mash while wort is boiling in a separate vessel

Advanced Brewing Control

The latest Braumeister control system guides the brewer through every stage of the brewing process while maintaining precise process control. Recipes can be synchronised automatically and software updates downloaded directly via the integrated WiFi connection.

The modern touchscreen interface provides intuitive operation and excellent visibility of all brewing parameters. Large-format Braumeister systems also feature pressure sensor-controlled pump regulation, allowing pump performance to be managed automatically according to mash conditions.

The integrated timer function allows brewing liquor to be heated before production begins, helping reduce downtime and improve brewhouse efficiency.

Imported to order only. Local delivery from the port of arrival is additional. Please contact us for current pricing and lead times.


Download Full Spec Sheet

Enquire Now

Description

  • Heating elements: 6 × 3000W (18kW total)
  • Pump: 370W
  • Power supply: 400V three-phase (minimum 32A circuit protection)
  • Note: ANZ wiring and plug installation required. Supplied without ANZ plug.
  • Total connected load: 20kW
  • Cooling system: 1.8m² double-jacket cooling surface area; approximately 2 hours to 25°C using ice water and whirlpool cooling. Additional external cooling may be required for faster cooling times.
  • Fully automatic brewing control for temperature, time and pump operation
  • Touchscreen Braumeister control system
  • Pressure sensor-controlled pump management with optional speed control
  • Vaulted top with DN150 connection for extraction hood and hop charging
  • Maximum malt capacity: 120kg

Dimensions & Shipping

  • Weight: 380kg

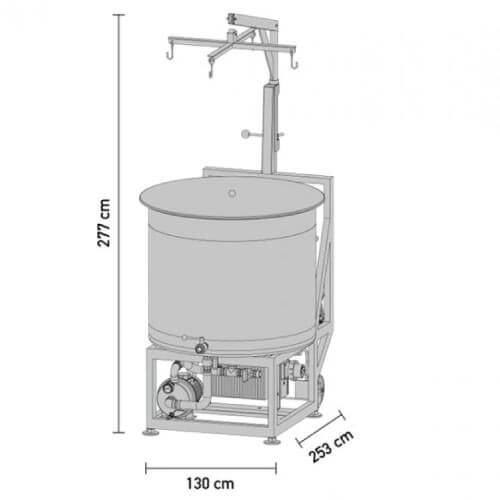

  • Dimensions: 2530 × 1300 × 2770mm (L × W × H)
  • Shipping weight: 500kg
  • Crated dimensions: 2450 × 1350 × 1410mm (L × W × H)

Ideal For

  • Commercial breweries
  • Brewpubs and hospitality venues
  • Contract brewing
  • Pilot and recipe development programmes
  • Community and collaborative brewing facilities
