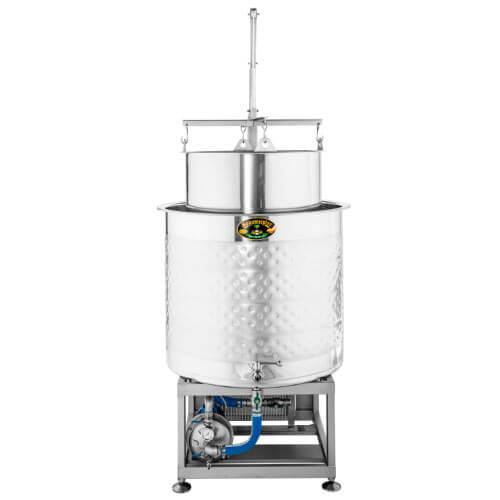

Braumeister 200L

braumeister-logo

The Braumeister 200L is a professional brewing system designed for breweries, hospitality venues, brewing clubs and serious craft brewers seeking larger batch volumes with minimal labour requirements.

The fully automatic brewing control system manages your customised recipes while guiding you through each step of the brewing process with precise temperature and timing control. Lautering is fast and efficient thanks to the included lifting device, allowing the malt pipe to be raised quickly and cleanly with minimal effort.

Despite its commercial-scale capacity, the Braumeister 200L remains compact, mobile and easy to operate. The integrated castor system allows the unit to be moved as required while maintaining a relatively small footprint.

Key Features

  • Premium German-manufactured stainless steel construction
  • Identical control philosophy to smaller Braumeister systems, allowing an easy transition from pilot-scale to larger production batches
  • Produces approximately 200L of finished beer per batch (approximately 230L of wort)
  • Double-mash capability can achieve up to approximately 350L of wort at 16°Plato (1.065 SG) after boiling
  • Integrated Wi-Fi for recipe synchronisation and software updates
  • Touchscreen control system with guided brewing process
  • Pressure sensor-controlled pump management for enhanced process control
  • Includes lifting system for efficient lautering

Advanced Brewing Control

The latest Braumeister control system allows you to brew using your own customised recipes while guiding you through every stage of the brewing process. Recipe synchronisation and software updates can be performed automatically via the integrated WiFi connection.

Time and temperature are maintained with exceptional accuracy throughout the brew day. The modern touchscreen interface simplifies operation and provides clear visibility of all brewing parameters.

Large-format Braumeister systems also feature pressure sensor-controlled pump regulation. A pressure sensor mounted in the circulation line continuously monitors operating conditions and automatically adjusts pump performance as required, helping optimise wort circulation and mash performance.

The integrated timer function allows brewing liquor to be heated before production begins, reducing downtime and improving brewhouse efficiency.

Currently one in stock. Please contact us for pricing and delivery information.


Download Full Spec Sheet

Enquire Now

Description

  • Heating elements: 3 × 3000W (9000W total)
  • Pump: 370W
  • Power supply: 400V three-phase (minimum 16A circuit protection)
  • Note: ANZ wiring and plug installation required. Supplied without ANZ plug.
  • Total connected load: 10kW
  • Cooling system: 1.3m² double-jacket cooling surface area; approximately 50 minutes to 25°C using ice water and whirlpool cooling
  • Fully automatic brewing control for temperature, time and pump operation
  • Touchscreen Braumeister control system
  • Pressure sensor-controlled pump management with optional speed control
  • Vaulted top with DN150 connection for extraction hood and hop charging
  • Maximum malt capacity: 42kg

Dimensions & Shipping

  • Operating weight: 150kg including inserts and lifting arms
  • Dimensions: 1360 × 900 × 2100mm (L × W × H)
  • Shipping weight: 200kg
  • Crated dimensions: 1320 × 1000 × 1750mm (L × W × H)

Ideal For

  • Commercial breweries and pilot brewing
  • Brewpubs and hospitality venues
  • Contract brewing trials
  • Recipe development and small-batch production
  • Brewing clubs and educational facilities
