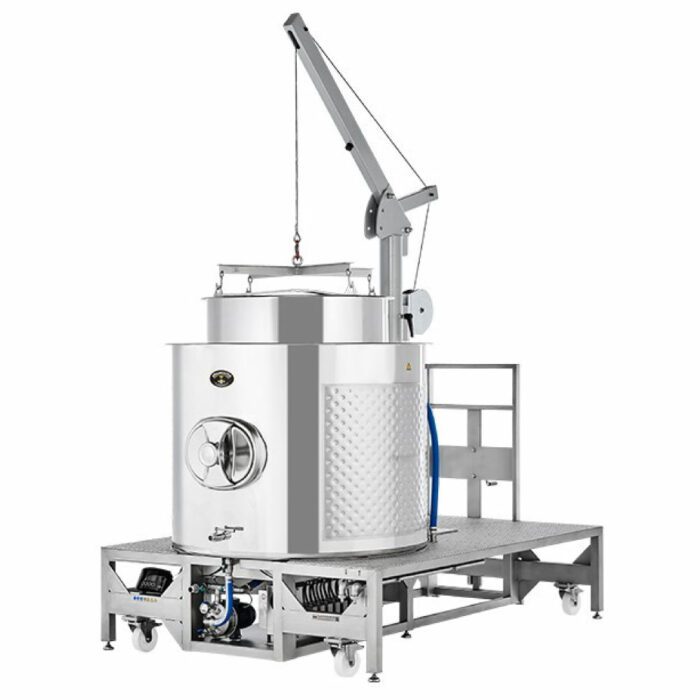

Developed in response to customer demand, the Braumeister 1000L brings the simplicity and automation of the Braumeister brewing system to true commercial-scale production. Despite its impressive capacity, the brewing process remains as straightforward and intuitive as the smaller Braumeister models.

The fully automatic brewing control system manages your customised recipes while precisely maintaining temperatures and timings throughout every stage of the brewing process. Brewing, lautering, hop boiling, whirlpooling and cooling are all carried out within a single vessel, simplifying production and reducing equipment requirements.

The integrated lifting system, complete with winch-operated crane, allows the large malt pipe to be raised safely and efficiently during lautering. Adjustable feet provide stability during operation, while integrated castors allow the system to be repositioned when required.

Despite its 1,000-litre capacity, the Braumeister remains a remarkably compact brewing system, making it suitable for breweries looking to maximise production without sacrificing valuable floor space.

Key Features

  • Premium German-manufactured stainless steel construction
  • Produces approximately 1,000L of finished beer per batch
  • All-in-one brewing system incorporating brewing, lautering, boiling, whirlpooling and cooling
  • Integrated crane and winch lifting system for effortless malt pipe handling
  • Touchscreen brewing control with guided brewing process
  • Integrated Wi-Fi for recipe synchronisation and software updates
  • Pressure sensor-controlled pump management for optimised wort circulation
  • Compact footprint relative to brewing capacity

Advanced Brewing Control

The latest Braumeister control system allows brewers to create and manage customised recipes while receiving step-by-step guidance throughout the brewing process. Recipes can be synchronised automatically, and software updates can be installed directly via the integrated Wi-Fi connection.

Temperature and process timing are maintained with exceptional precision across all brewing phases. The modern touchscreen interface provides intuitive operation and complete visibility of brewing parameters.

Large-format Braumeister systems feature pressure sensor-controlled pump regulation. The pressure sensor continuously monitors circulation conditions and automatically adjusts pump performance to optimise mash operation and wort flow.

An integrated timer function allows brewing liquor to be heated before production begins, improving brewhouse efficiency and reducing downtime.

Imported to order only. Local delivery from the port of arrival is additional. Please contact us for current pricing and lead times.


Download Full Spec Sheet

Enquire Now

Description

  • Heating elements: 12 × 3000W (36kW total)
  • Pump: 370W
  • Power supply: 400V three-phase (minimum 63A circuit protection)
  • Note: ANZ wiring and plug installation required. Supplied without ANZ plug.
  • Total connected load: 38kW
  • Cooling system: 2.56m² double-jacket cooling surface area
  • An external plate heat exchanger is recommended for efficient cooling and reduced cooling times
  • Fully automatic brewing control for temperature, time and pump operation
  • Pressure sensor-controlled pump management with optional speed control
  • Vaulted top with DN150 connection for extraction hood and hop charging
  • Maximum malt capacity: 225kg

Dimensions & Shipping

  • Operating weight: 850kg

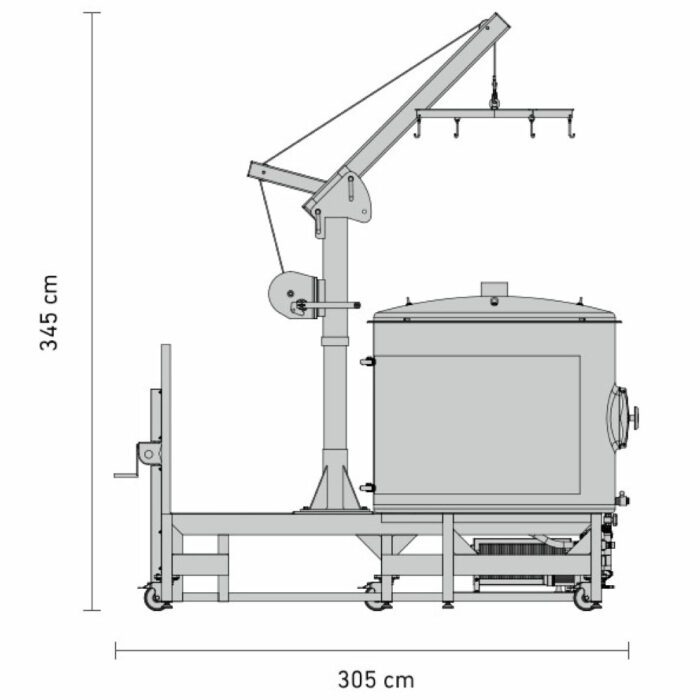

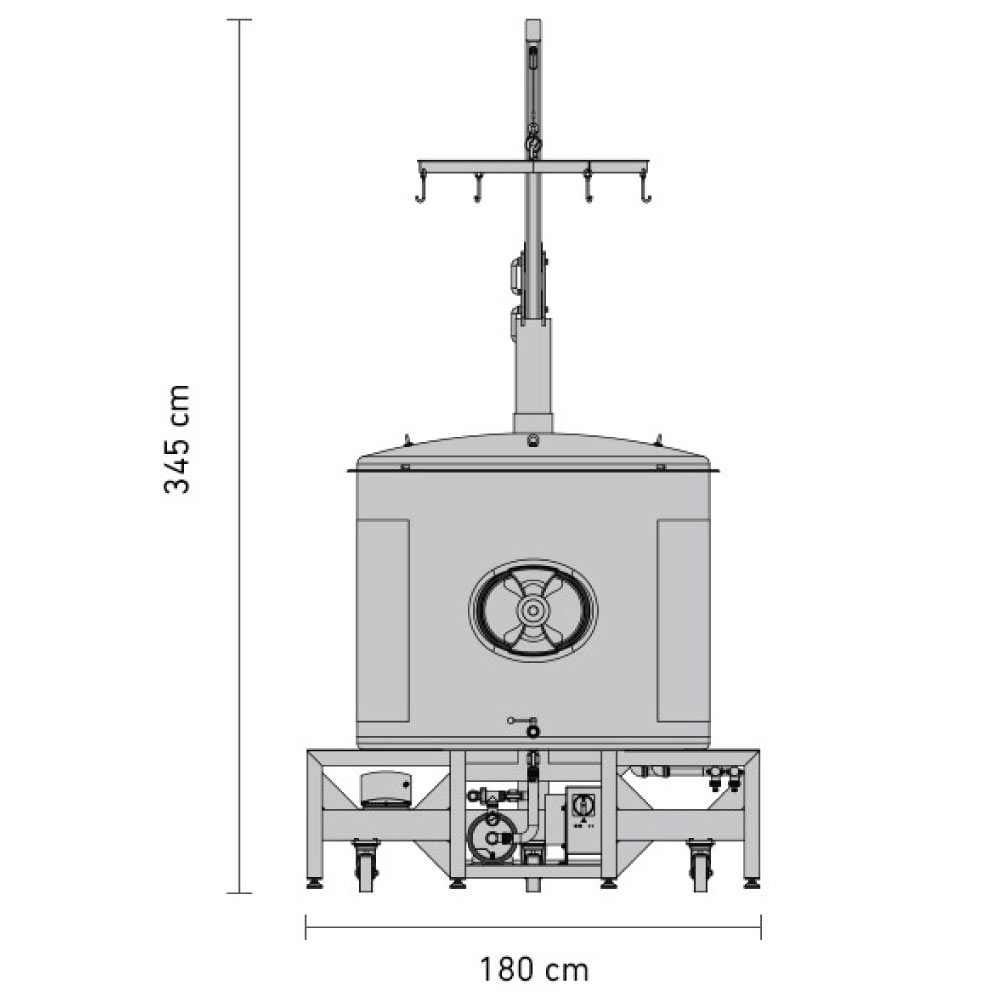

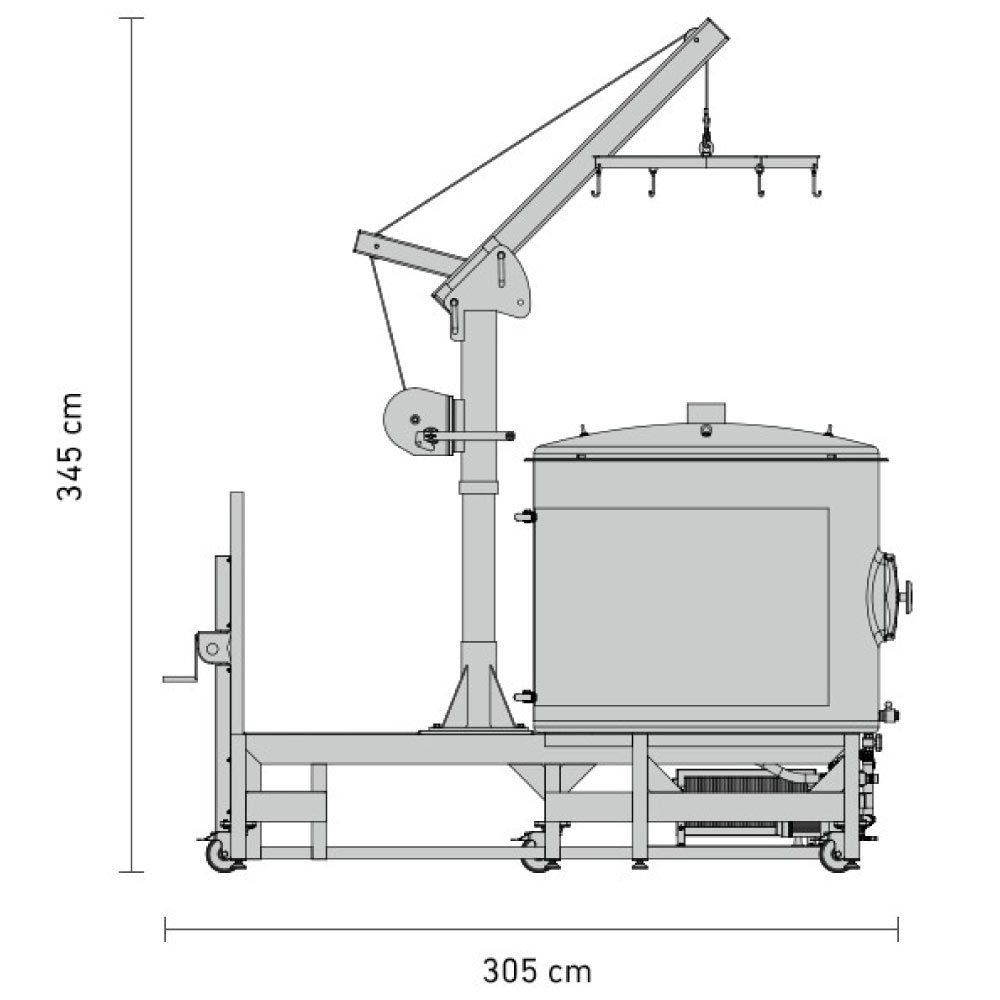

  • Dimensions: 3050 × 1800 × 3450mm (L × W × H)
  • Shipping weight: 980kg
  • Crated dimensions: 3100 × 1900 × 1950mm (L × W × H)

Ideal For

  • Commercial craft breweries
  • Brewpubs and hospitality venues
  • Contract brewing operations
  • High-volume pilot and production brewing
  • Educational and research brewing facilities
